Trident manure separator

The Trident manure separator with Posi-Track is designed specifically for Sand-Laden Manure (SLM). It is a simple and efficient rotating screen separator that operates in any SLM applications Scrape Flush or Flume. Excellent resistance to abrasion, exceptional flow characteristics and superior solid removal makes the Trident perfect for any manure system application. The automated Clean in Place (CIP) cleaning system reduces screen clogging ensuring constant material processing rates. The Trident Posi-Track sprocket & ring gear drive system turns the screen on dependable rubber idler wheels guaranteeing absolutely no slipping and trouble free operation for many years.


Trident 600 manure conditioner

The Trident 600 manure conditioner with Posi-Track is designed specifically for bedding recovery. It is a simple and efficient conditioner for fiber extraction in bedding recovery applications. Excellent resistance to abrasion, exceptional flow characteristics and superior fiber extraction makes the Equipment perfect for bedding recovery. The automated Clean in Place (CIP) cleaning system reduces screen clogging ensuring constant material processing rates. The new hybrid Trident Posi-Track drive system turns the screen on dependable idler wheels guaranteeing absolutely no slipping and trouble free operation for many years.


Trident Hi-Solids press

The Trident Hi-Solids press is purpose built, durable, robust and efficient for making bedding material from dairy manure. The press uses a unique tapered screw and conical screen design that maximizes compression generating exceptional dry matter. The resulting low moisture solids are coarse and fluffy providing both cow comfort and excellent drainage characteristics required for use in today’s modern dairies. The unique conical design eliminates the need for tight tolerances dramatically reducing wear lowering maintenance and operational costs. The tapered screw never comes in contact with the screen. Robust construction coupled with corrosion resistant components and wear resistant design assures long life. The low tolerance design eliminates the high wear issues found in other screw presses providing long life making the Trident Hi-Solids press reliable and economical to operate.

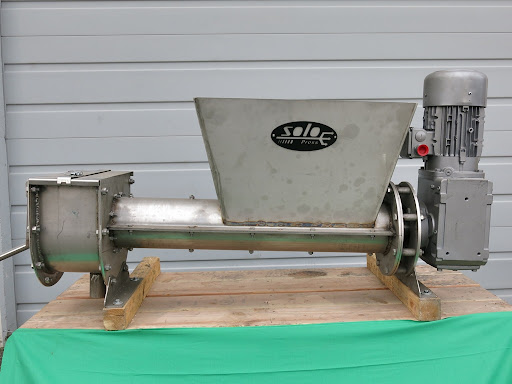

Trident SOLO screw press

The Trident SOLO screw press is purpose built, durable, robust and efficient to dehydrate pre-thickened dairy manure to a maximum of 75% solids. The press uses a simple stainless steel auger and shaft assembly running in Tivar 88 liner that reduces component wear and extends operating life. The thickened manure is compressed and dehydrated in the unique reinforced stainless steel bar screen dehydrating chamber. The .036" slot openings provide maximum flow through the screen ensuring high capacity output and dry solids. The simplistic design eliminates the need for tight tolerances dramatically reducing wear lowering maintenance and operational costs. Robust construction coupled with corrosion resistant stainless steel components assures long life. The low tolerance design eliminates the high wear issues found in other screw presses.


SEPCOM screw press

The SEPCOM screw press is purpose built, durable, robust and efficient to dehydrate pre-thickened dairy manure to a maximum of 75% solids. The press uses a simple stainless steel auger and shaft assembly running in Tivar 88 liner that reduces component wear and extends operating life. The thickened manure is compressed and dehydrated in the unique reinforced stainless steel bar screen dehydrating chamber. The .036" slot openings provide maximum flow through the screen ensuring high capacity output and dry solids. The simplistic design eliminates the need for tight tolerances dramatically reducing wear lowering maintenance and operational costs. Robust construction coupled with corrosion resistant stainless steel components assures long life. The low tolerance design eliminates the high wear issues found in other screw presses.

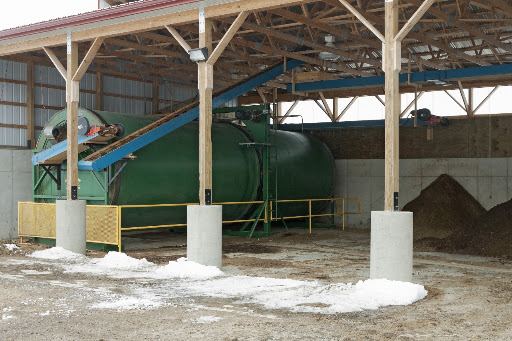

Trident Rotary Drum

The dehydrated manure separated solids are fed into the Trident Rotary Drum through fixed end opening to maximize throughput capacity. Proven technology, robust construction and HD components ensure long life and reliable operation.


Dissolve Air Flotation (DAF) unit

The Dissolve Air Flotation (DAF) unit clarifies animal wastewater by removing suspended organic material. Pressurized air injected into a patented mixing reactor optimizes air entrainment forming micro bubbles that float the suspended solid particles in the wastewater to the surface. The particles form a layer of sludge on the surface which is skimmed off by a rake assembly. The captured sludge is then transferred by an auger to a collection chamber.

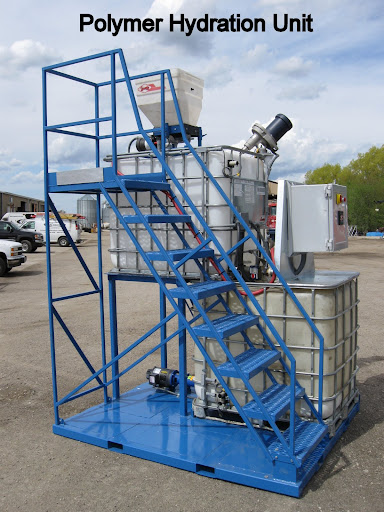

BEI polymer hydration unit

The BEI polymer hydration unit is an automated two stage dry polymer make-down and aging system that accurately meters, mixes, ages and then dispenses hydrated polymers for use in livestock wastewater treatment. In the make-down stage precise amounts of dry polymer are metered onto a diffuser plate, liquefied and thoroughly mixed. The blended polymer solution is transferred by gravity from the make- down and aging tank to the second stage tank for introduction to the waste stream. The hydrated polymer is injected into the waste stream via a positive displacement pump that delivers exact amounts of polymer for cost effective and efficient applications.
